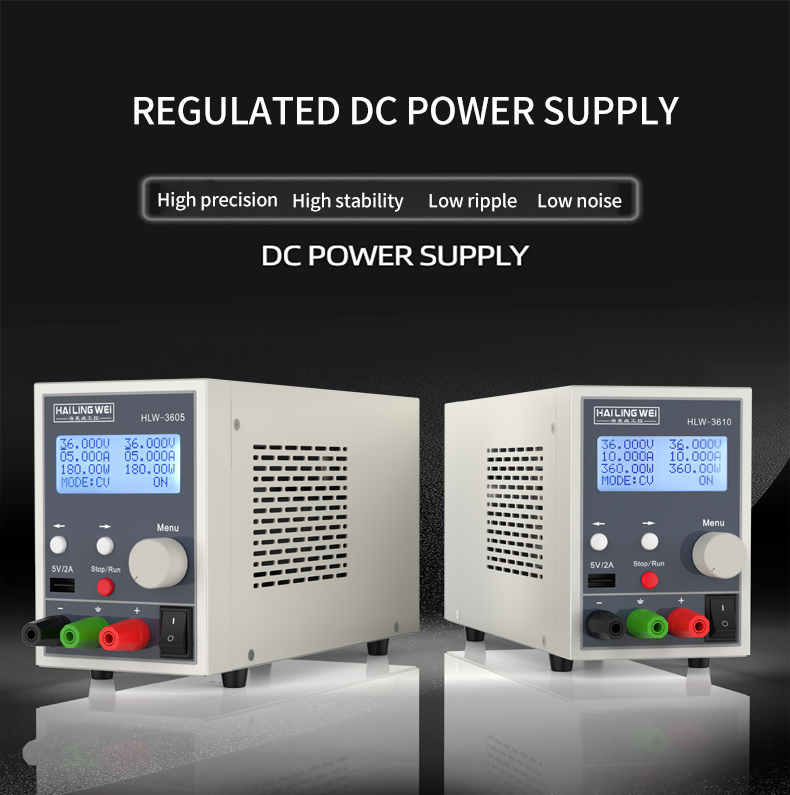

DC adjustable power supply 36V10A
Overview

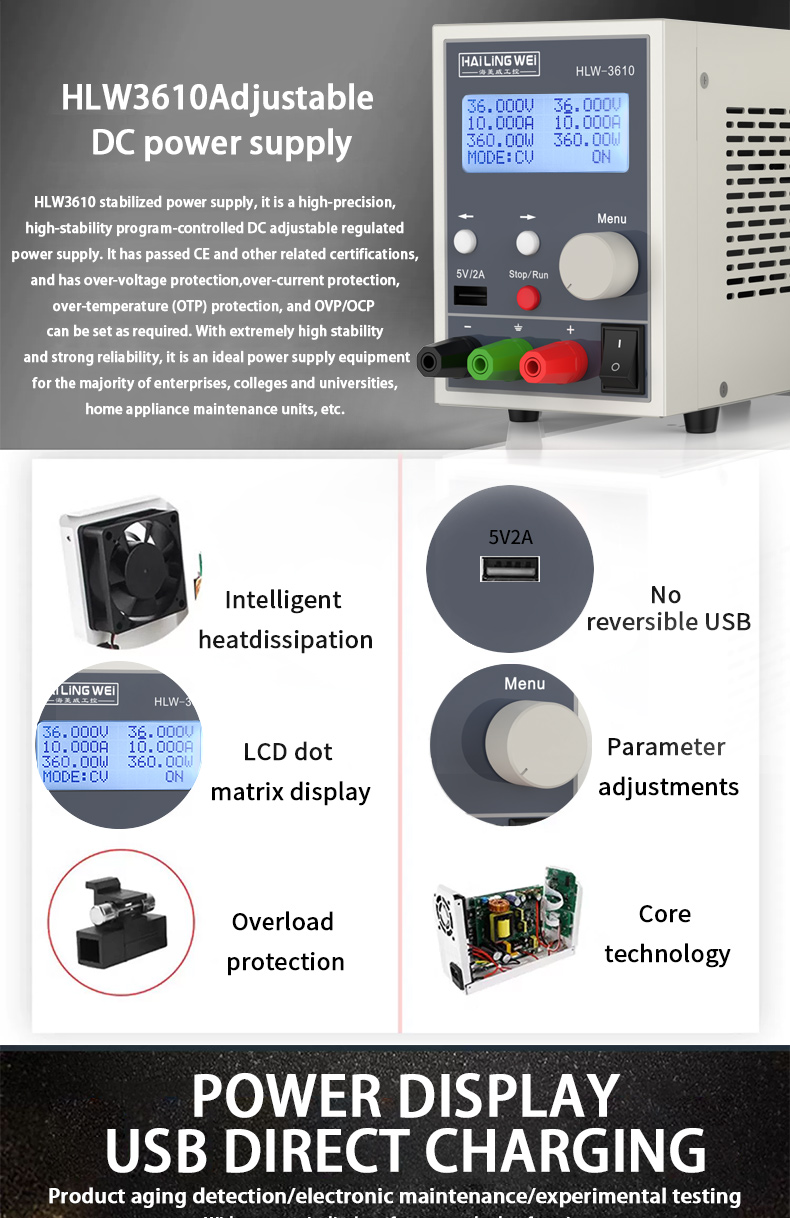

HLW3610 stabilized power supply, it is a high-precision, high-stability
program-controlled DC adjustable regulated power supply. It has passed CE and
other related certifications, and has over-voltage protection, over-current
protection, over-temperature (OTP) protection, and OVP/OCP can be set as
required. With extremely high stability and strong reliability, it is an ideal
power supply equipment for the majority of enterprises, colleges and
universities, home appliance maintenance units, etc.
Product Specifications
Model：HLW3610
Voltage：0-36V
Current：0-10A
Screen display bits：5 digits
Load stability：≤0.5%+3mV
Set the accuracy：≤0.1%+1digits
Technical parameters
Rated operating conditions
Operating voltage：AC220V±10% 50/60HZ
Working conditions：temperature -10~50℃ Relative humidity：≤80%RH
Storage conditions：temperature -30~80℃
Relative humidity：≤80%RH
Guaranteed accuracy temperature range：23℃±5℃
Voltage | |
Voltage range | 0-36V±0.2% |
Voltage stability | ≤0.2%+5mV |
Load stability | ≤0.5%+3mV |
Set the resolution | 1mV |
Set the accuracy | ≤0.1%+1digits |
Readback resolution | 1mV |
Readback accuracy | ≤0.1%+1digits |
Ripple noise | ≤30mVrms |
Generator | |
Current range | 0-10.0A±0.2% |
Current stability | ≤0.2%+3mA |
Load stability | ≤0.5%+3mA |
Set the resolution | 1mA |
Set the accuracy | ≤0.2%+3mA |
Readback resolution | 1mA |
Readback accuracy | ≤0.2%+3digits |
Ripple noise | ≤20mAems |
Other | |

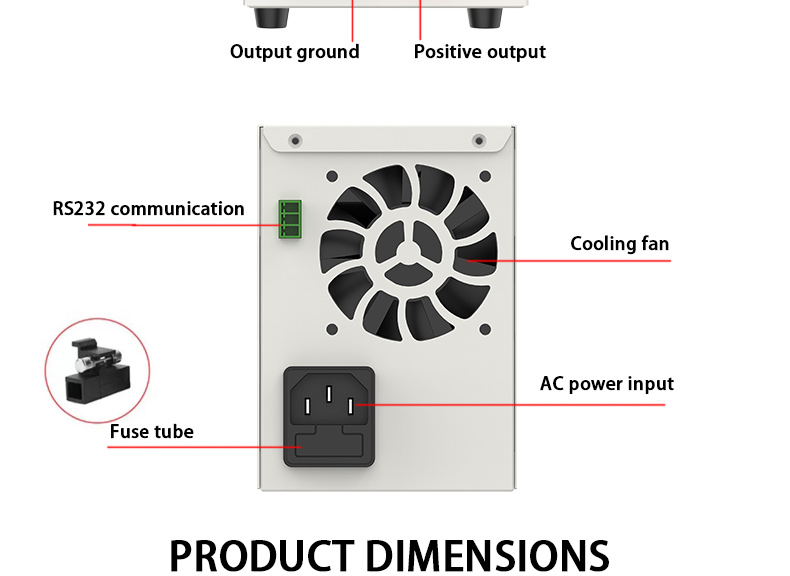

Methods of Communication | RS232 |
USB Output | 5V/2A |
Heat dissipation | Air-cooled |
Weight | 1. 36kg |

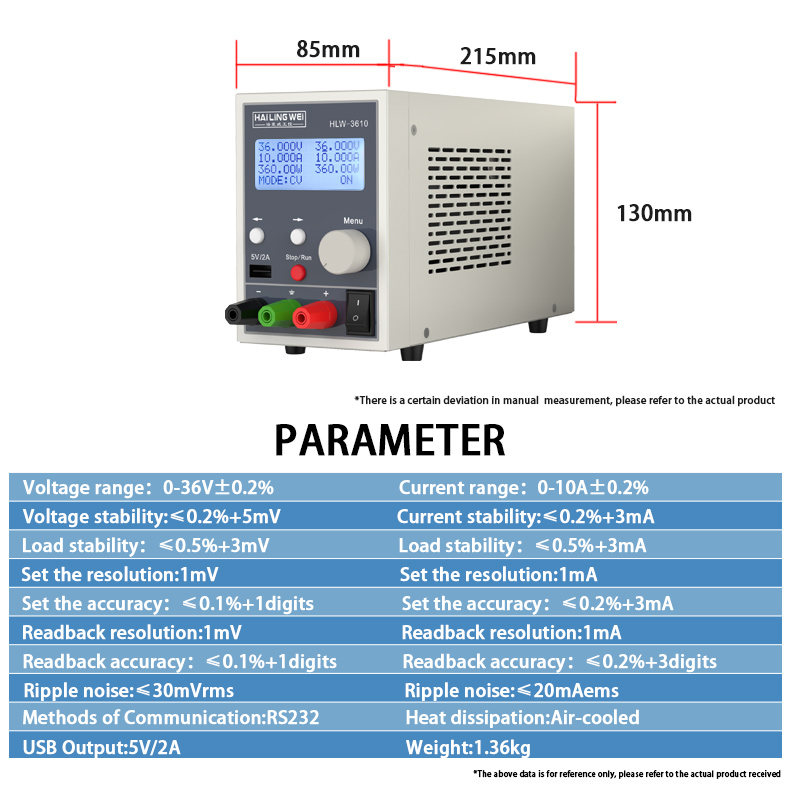

Size | 215X85X130mm |
