8-way light source controller
Product Description:

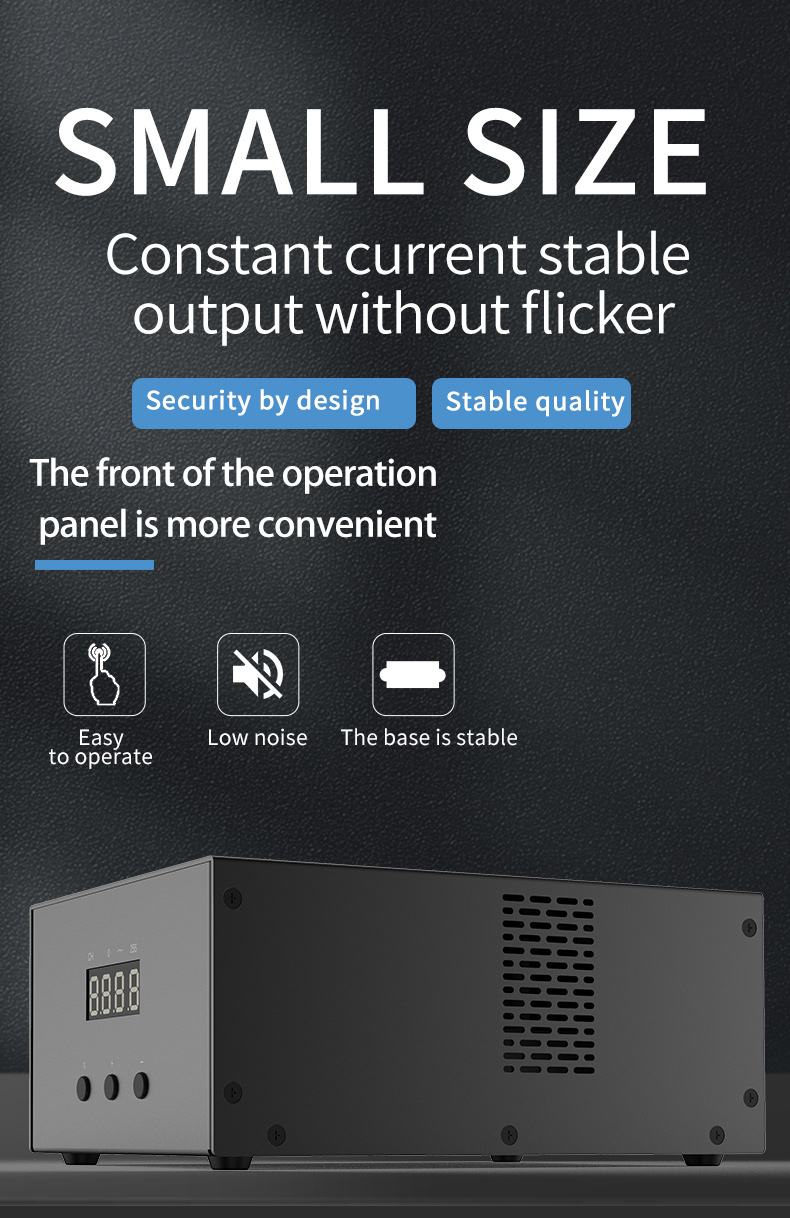

The controller mainly uses PWM to control the 24V constant current stable output, so that the brightness of the
LED light source is designed without flicker.
It is mainly used to control machine vision and industrial inspection LED light sources.
Features:

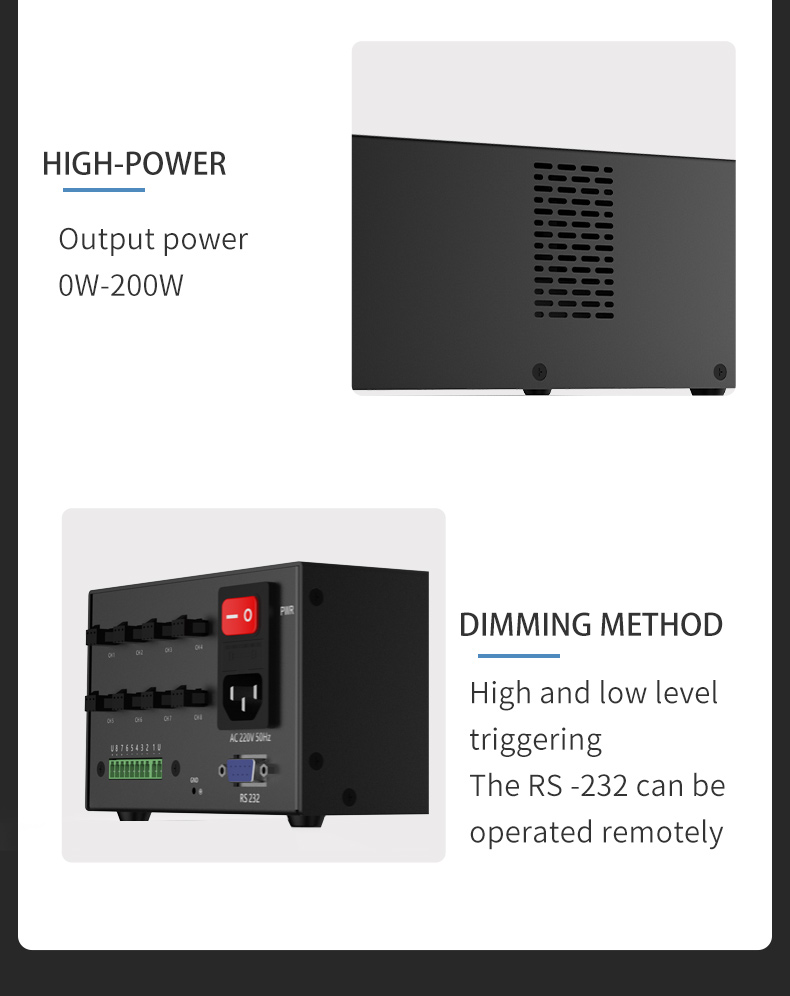

● The external trigger high and low level can be selected, and the use is flexible

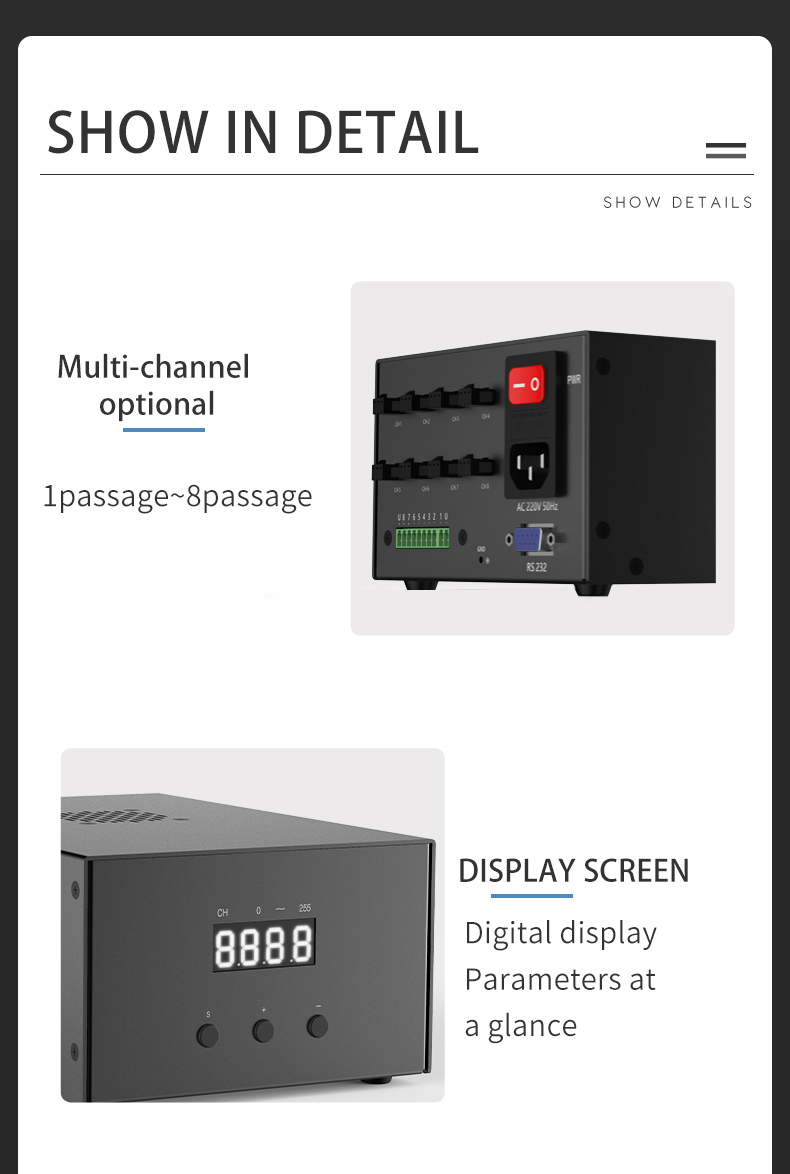

● One controller can independently control eight different LED light sources.
● Precise control of the lighting time of the light source.
● The trigger effect time is less than 8us.
● Suitable for all kinds of LED light sources within constant voltage 24V / input voltage 200W
● Support storage of 99 sets of data
● 255 levels of fine dimming
● RS232 remote control
● Support AC 110~220V input

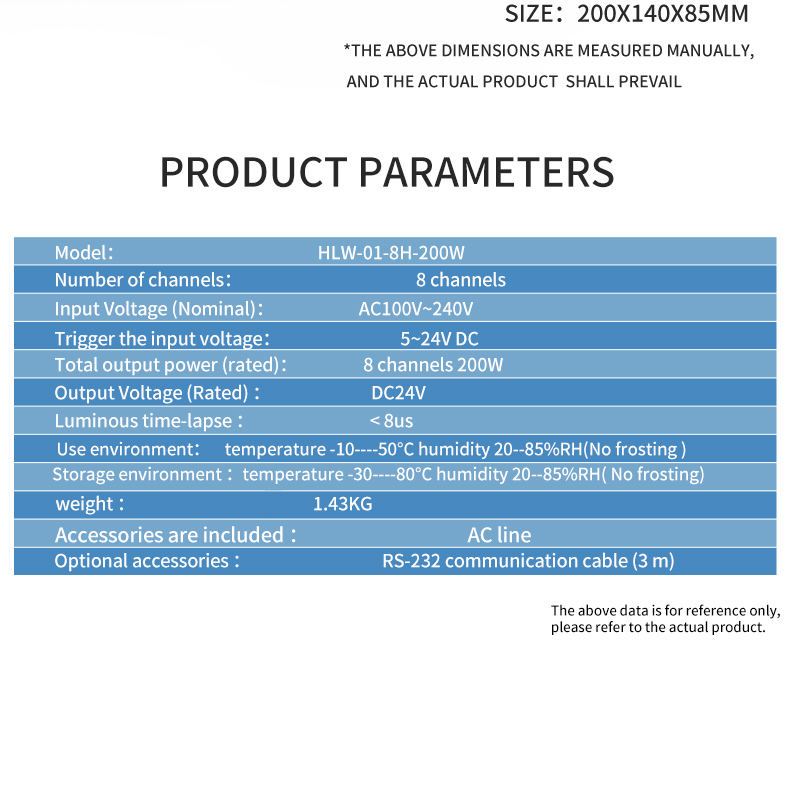

Model | HLW-01-8H-200W |
Number of channels | 8 channels |
Input Voltage (Nominal) | AC100V～240V |
Trigger the input voltage | 5～24VDC |
Total output power (rated) | 8 channels 200W |
Output Voltage (Rated) | DC24V |
Luminous time-lapse | <8uS |
Use environment | temperature -10--50°C humidity 20--85%RH(No frosting) |
Storage environment | temperature -30--80°C humidity 20--85%RH(No frosting) |
weight | 1.43KG |
Accessories are included | AC line |
Optional accessories | RS-232 communication cable (3 m) |
