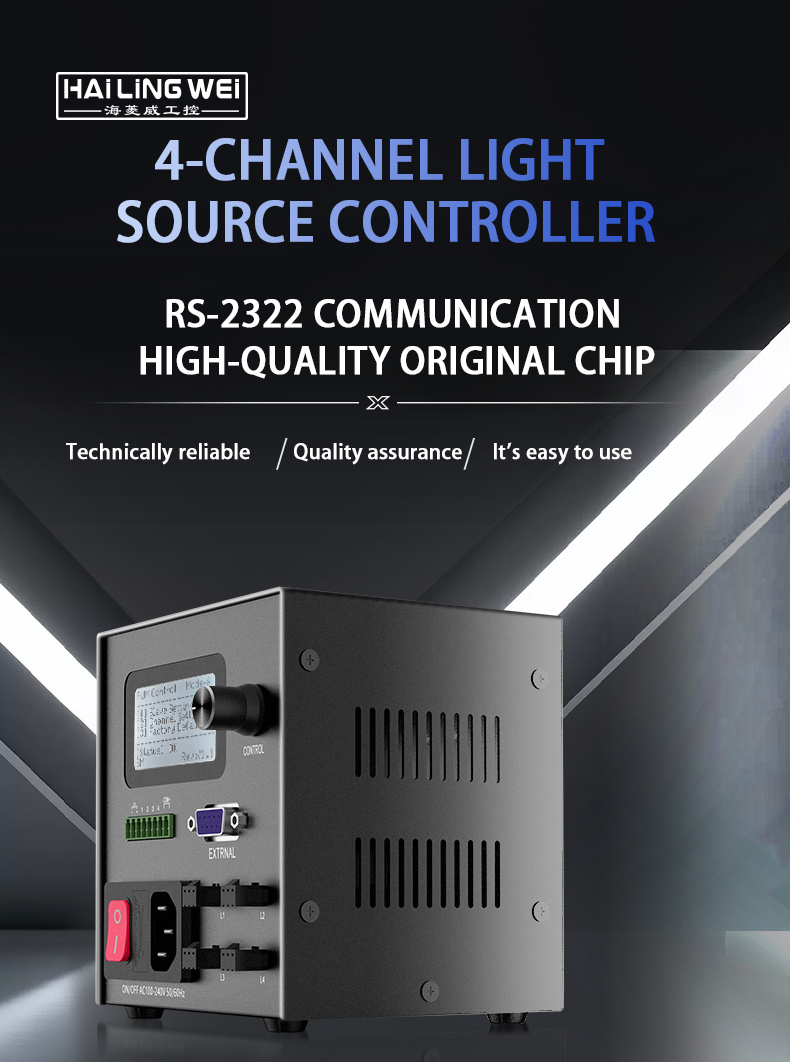

4-way light source controller

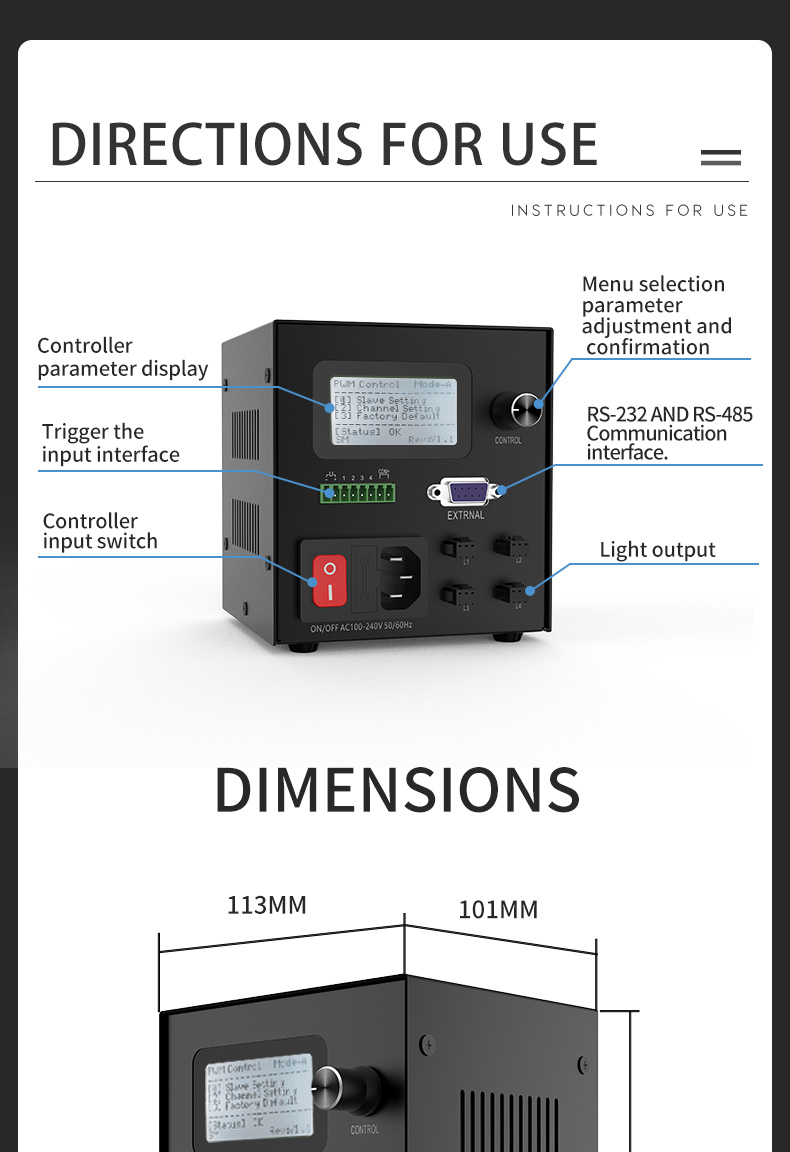

Directions for use：

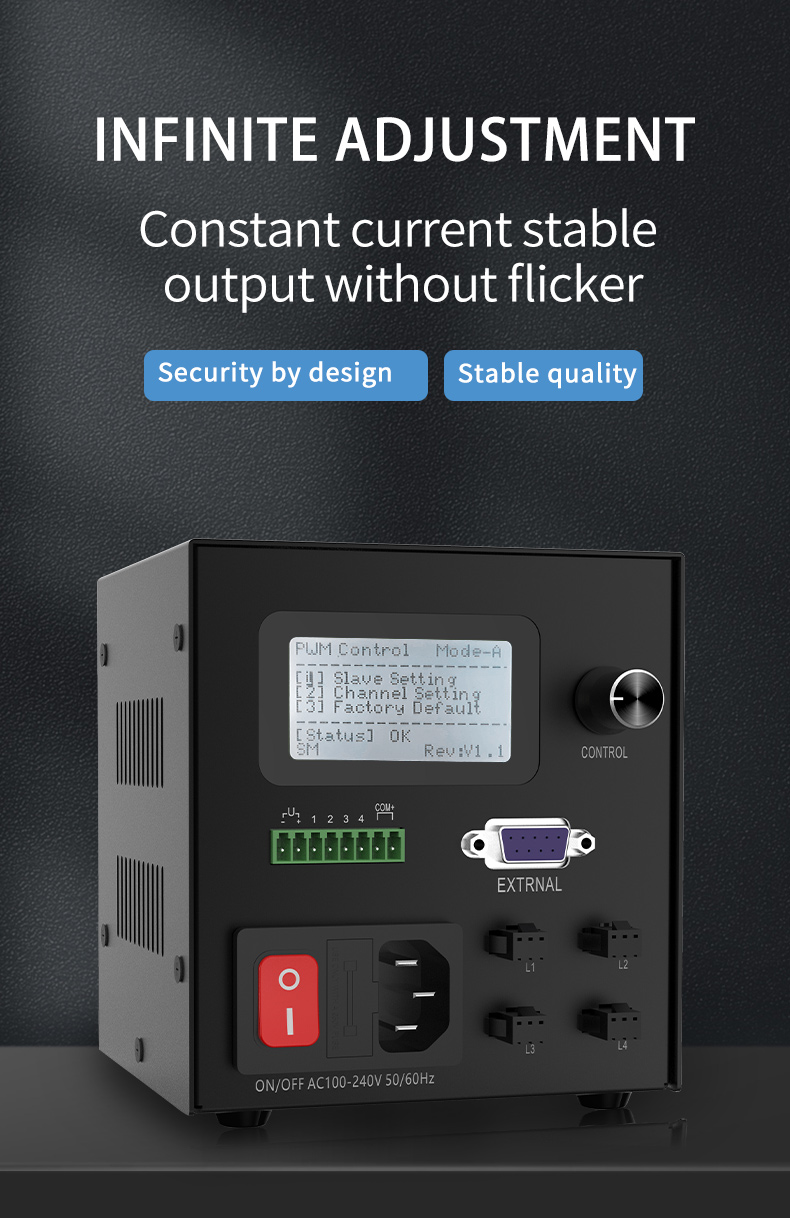

The controller mainly uses PWM to control the 24V constant current stable output, so that the brightness of the
LED light source is designed without flicker.
It is mainly used to control machine vision and industrial inspection LED light sources.
Features：
● The external trigger high and low level can be selected, and the use is flexible

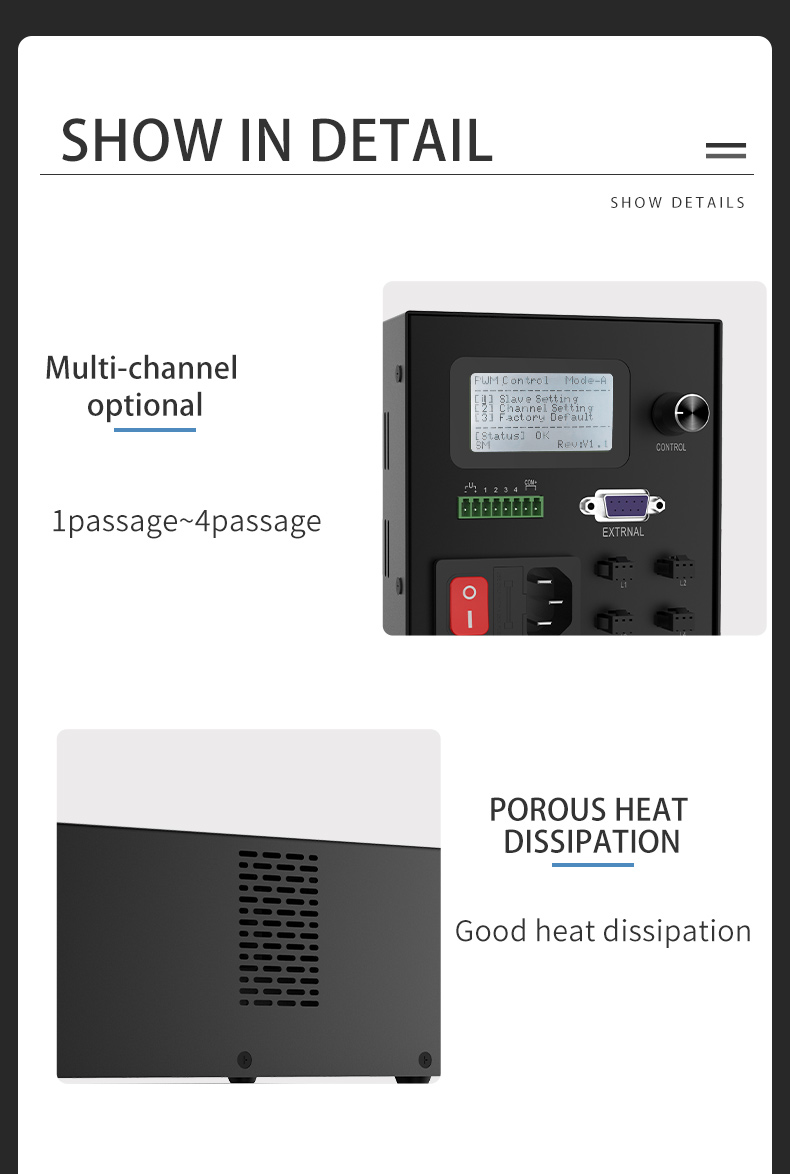

● One controller can control four different LED light sourcesindependently.
● Precise control of the lighting time of the light source.
● The trigger effect time is less than 40us.
Suitable for all kinds of LED light sources within constant voltage 24V input
voltage within 100W.

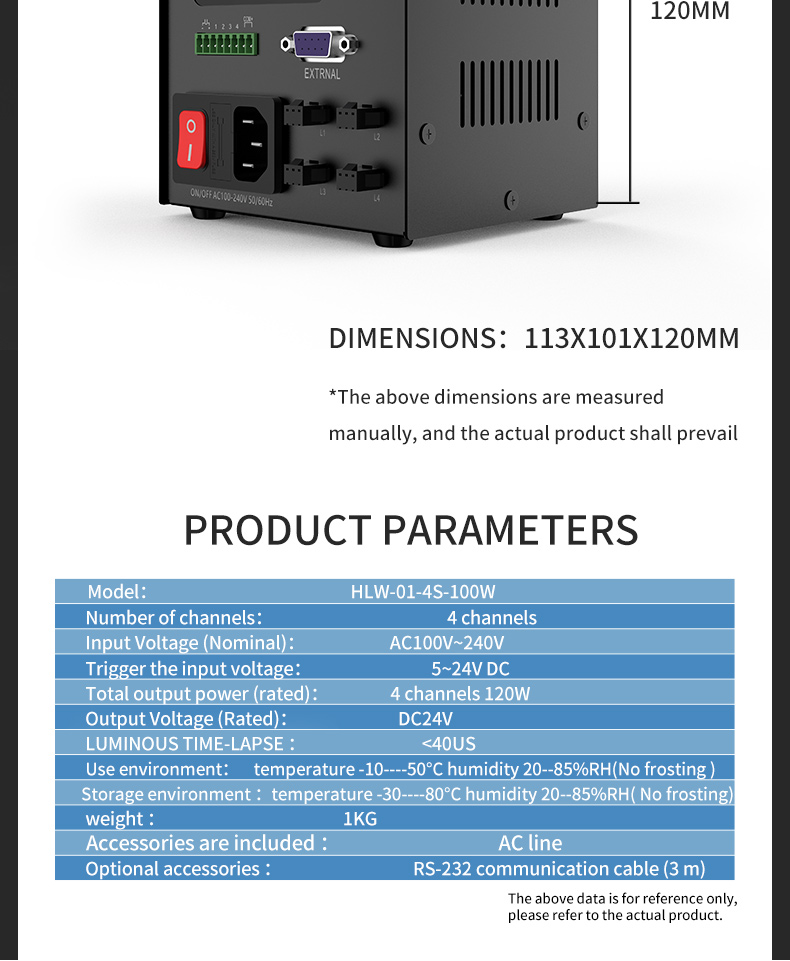

Model | HLW-01-4S-100W |
Number of channels | 4 channels |
Overcurrent protection | When the output current exceeds 107%, the display is in error, and the power is restored after troubleshooting |
Input Voltage (Nominal) | AC100V～240V |
Trigger the input voltage | 5～24VDC |

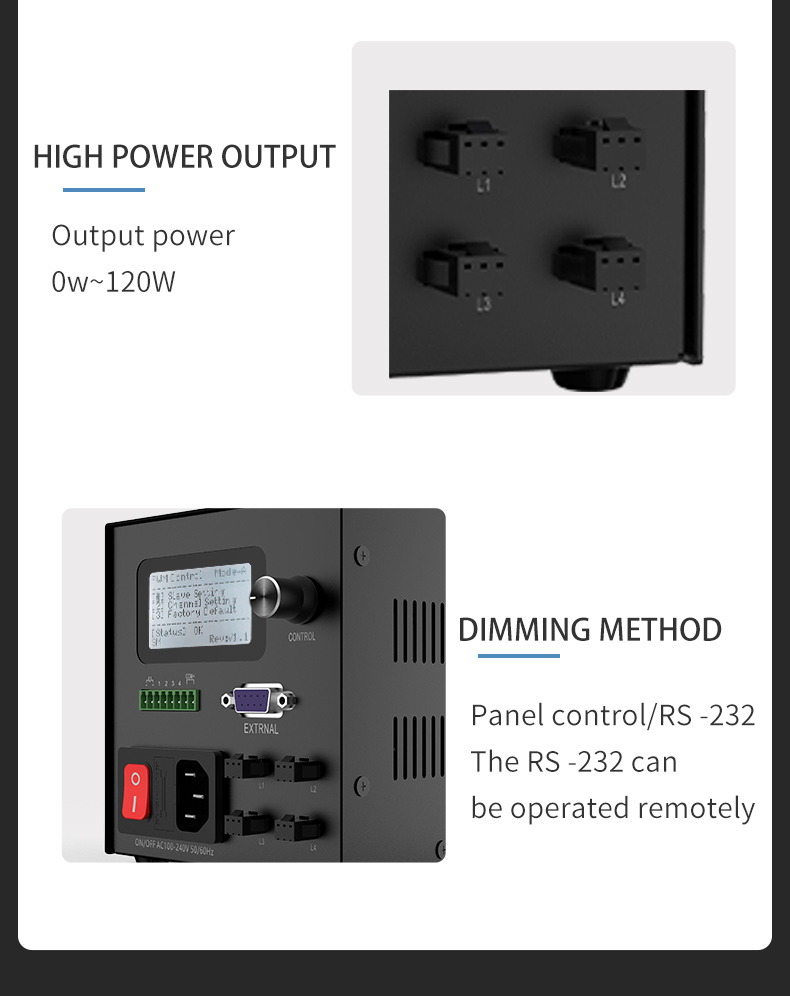

Total output power (rated) | 4 channels 120W |
Output Voltage (Rated) | DC24V |
Luminous time-lapse | ＜40us |
Use environment | temperature -10--50°C humidity 20--85%RH( No frosting ) |
Storage environment | temperature -30--80°C humidity 20--85%RH( No frosting ) |
weight | 1KG |
Accessories are included | AC line |
Optional accessories | RS-232 communication cable (3 m) |
